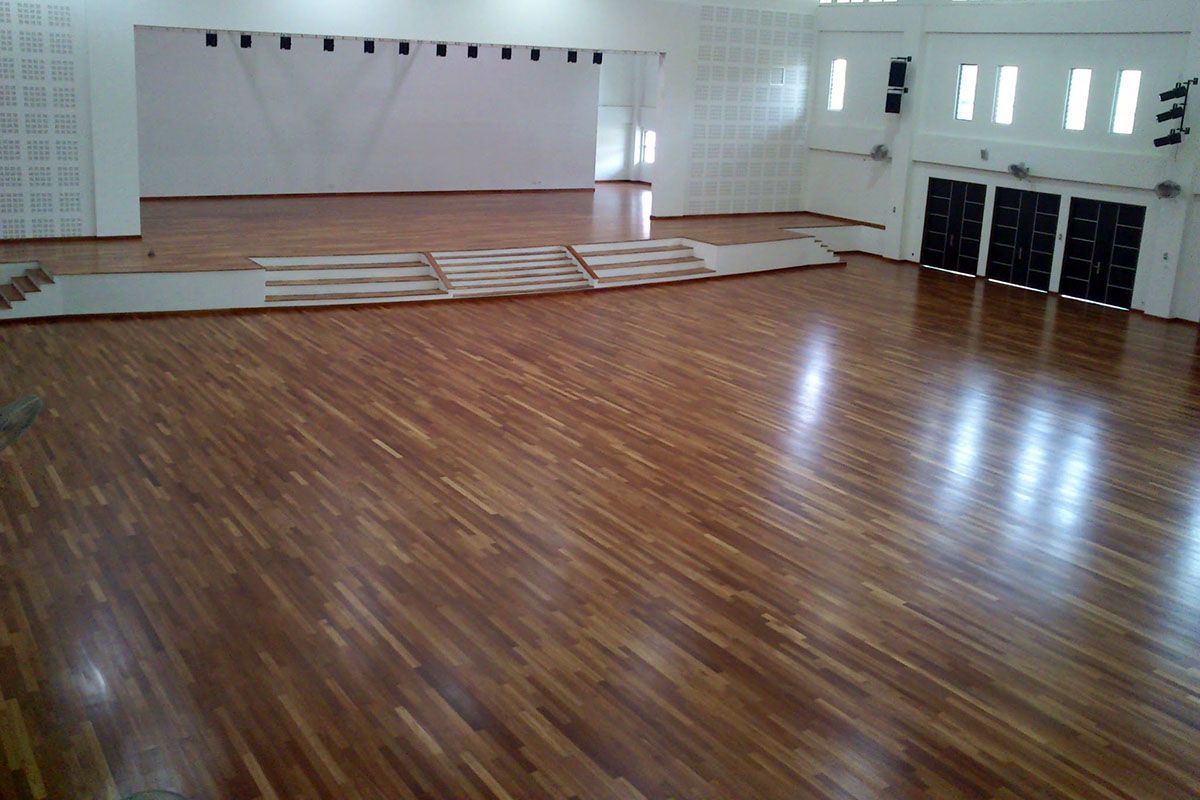

Resilient™ Timber Sports Floor System are constructed using either hardwood timber parquetryfingers or tongue and groove strip timber boards. The timber parquetry shall be fully bonded to the plywood subfloor, laid at 45 degrees to the direction of the plywood.

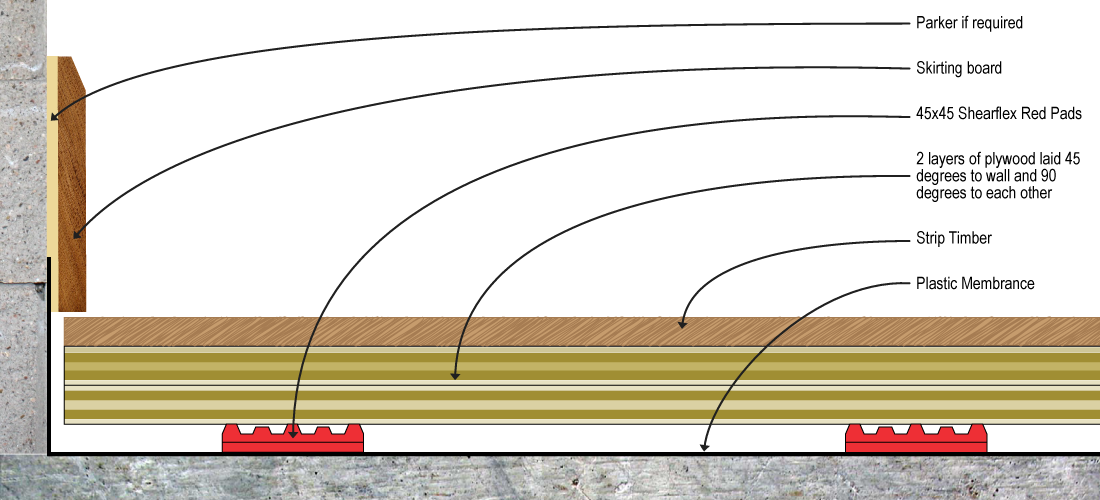

The timber floor surfacing materials shall be fully supported over the entire area to be covered by a double layer of MR grade 12mm thick plywood. Individual elastomeric pads of approved dimension and hardness shall support the plywood layers over the entire area to be covered, with special attention given to the perimeters of the installation. The flooring system shall be isolated from the substrate with a minimum 200um polyethylene sheeting lapped and taped at all joints.

The timber floor surface species recommended include Merbau, Kempas and White Oak (The parquetry will be of Merbau or Kempas species). Other timbers may be suitable for this system.

Junckers Sports Lacquer

Approved according to EN14904

Junckers is represented at many indoor sporting events around the world. Junckers has a complete programme that can provide durability and lining for sports floors. And one can certainly say that Junckers shines up the floor. Both before and after the game.

Junckers HP SPORT Lacquer can withstand all hard sports tackles and it is quick and easy to machine clean, so that the floor is ready for new challenges.

World leading sports lacquer (Approved according to EN14904)

Junckers is Europe’s leading manufacturer of solid hardwood sports, dance and activity floor systems. For many decades Junckers has provided systems to meet the wide ranging needs of local community and multi purpose halls, through to global landmark venues for Olympic, Commonwealth and professional sport.

Junckers HP Sport

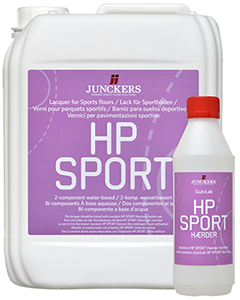

Junckers HP SPORT is a 2-component water-based 100% polyurethane lacquer. High traffic, high durability sports lacquer. Scuff resistant, fastest curing seal. Non yellowing – ready for use the next day. Conforms to DIN and EN 14904 sports standards. Junckers HP SPORT lacquer must be mixed with Junckers HP SPORT Hardener before use.

Junckers PreLak, Clear and White, Water-based

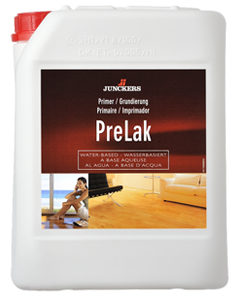

Junckers PreLak is a 1-component water-based primer for all wooden floors to minimise side bonding. Dries quickly and is easy to sand. PreLak can be used with Junckers 1-pack and 2-pack water based finishes
Project Location Area
Asia & Pacific

Yuen Long Area 13 School

 Hong Kong, Hong Kong 2,800 sqm.

Kowloon Park Redevelopment

 Hong Kong, Hong Kong 1,967 sqm.

Tung Chung IRC

  Hong Kong, Hong Kong  2,200 sqm

St. Paul Co-ed College Primary School

 Hong Kong, Hong Kong 1,500 sqm.

Guangzhou Tianhe Gymnasium

  Guangzhou, China  2,300 sqm.

Beijing Sports University

  Beijing, China  12,000 sqm (3 sportshalls)

Taipei Municipal Nei-Hu High School

  Taipei Nei-Hu, Taiwan  1,186 sqm.

Taipei County Yingge Vocational High School

  Taipei County Yingge, Taiwan 1,106 sqm.

Beijing Sports University

  Beijing, China  12,000 sqm (3 sportshalls)

Beijing Sports University

  Beijing, China  12,000 sqm (3 sportshalls)

Porirua Sports and Events Centre

  Wellington, New Zealand  3,400 sqm.

Arena Manawatu

  Palmerston, New Zealand  2,500 sqm.

Saxton Indoor Sports Stadium

  Nelson, New Zealand  3,800 sqm.

Waitekere Stadium

  Auckland, New Zealand  5,800 sqm.
Europe + Russia (CIS)

Frankfurt Halle

 Frankfurt, Germany 1,400 sqm.

Campushalle Flensburg

 Flensburg, Germany 1,000 sqm.

Cesis Arena

 Cesis, Latvia 2,100 sqm.

Sporthalle Grundschule Mejasi

 Split, Croatia 1,450 sqm.

University of Cyprus

 Nicosia, Cyprus 1,500 sqm.

Latsia Gymnasium

 Nicosia, Cyprus 1,600 sqm.

Gigantium

 Aalborg, Denmark 1,000 sqm.

NRGI Arena

 Aarhus, Denmark 1,200 sqm.

Odense Kongrescenter

 Odense, Denmark 3,000 sqm.

KEF-Centret

 Kolding, Denmark 1,100 sqm.

Glasgow Commonwealth Games 2014

 Crystal Palace Sports Centre, London, England 2,500 sqm.

London School for Contemporary Dance

 The Place, London, England 1,000 sqm.

NIKE Regal Sports Centre

 London, England 600 sqm.

Guildford Spectrum Leisure Ctr. Sports Hall

 Guildford, England 670 sqm.

Dojo of Ceyrat

 Ceyrat, France 2,452 sqm.

Rink Hockey Sport Room

 Auxerre, France 1,803 sqm.

UCC Mardyke Arena

 Cork, Ireland 1,080 sqm.

Killarney Sports & Leisure Complex

 Kerry, Ireland 1,200 sqm.

Siemens Arena

 Vilnius, Lithuania 615 sqm.

Lietuvos Ryto Arena

 Vilnius, Lithuania 600 sqm.

Helenic Arena

 Athens, Greece 1,800 sqm.

Jalilabad Olympic Sport Complex

 Jalilabad, Azerbaijan 1,300 sqm.

Spodek Sports Hall

 Katowice, Poland 1,750 sqm.

Mosir Lodz

 Poland 2,300 sqm.

Adam Mickiewicz University

 Poznan, Poland 1,600 sqm.

Ustrzyki Dolne Sports hall

 Poland 1,100 sqm.

Biala Multipurpose Sports hall

 Poland 1,860 sqm.

Biala Multipurpose Sports hall

 Poland 1,860 sqm.

Polivalenta Arena

 Bucharest, Romania 1,200 sqm.

CSKA Moscow Basketball Club

 Moscow, Russia 850 sqm.

Sports Complex Gazprom Neft

 Saint Petersburg, Russia 775 sqm.

Sports School of Olympic Reserve

 Moscow, Russia 750 sqm.

Sports Palace

 Tbilisi, Georgia 1,400 sqm.

Primary School, Dusan Radovic

 Nis, Serbia 1,000 sqm.

Belgrade Arena

 Belgrade, Serbia 1,800 sqm.

Aréna Poprad

 Poprad, Slovakia 1,550 sqm.

Mestská Hala

 Presov, Slovakia 1,727 sqm.

Športová hala Pasienky

 Bratislava, Slovakia 1,000 sqm.

Palacio de Los Deportes Santa Cristina

 Torrevieja (Alicante), Spain 3,151 sqm.

Agrupacion Deportiva San Juan

 Pamplona, Spain 1,673 sqm.
Middle East

Cairo Stadium Squash Center

 Nasr City, Cairo, Egypt 320 sqm.

Mashhad University

 Mashhad, Iran 2,800 sqm.

Al Oyoun Club, Kuwait Olympic Committee

 Gahra, Kuwait 1,400 sqm.

19th Arabian Gulf Cup

 SQSC-Bowsher, Muscat, Oman 608 sqm.

Masdar City Sports Hall

 Abu Dhabi, UAE 1,394 sqm.

American School Sports Hall

 Dubai, UAE 1,200 sqm.
USA + South America

Cal State University of Long Beach

 Long Beach, California 3,300 sqm.

Southwest College

 California 1,000 sqm.

Dancing With The Stars Show

 California 200 sqm.

Torah Academy

 New York 1,000 sqm.

Arcadia High School

 California 1,800 sqm.

Hooptown

 Tennessee 1,200 sqm.

City of Kingsport

 Tennessee 1,200 sqm.

Speyer Legacy School

 New York 600 sqm.

Pacific Grove Middle School

 California 600 sqm.

Gimnasio Goodness

 Los Angeles, Chile 133 sqm.
OLYMPIC STADIUMS

Kazan Universiade, 2013

 Russia 10,000 sqm.

Olympics London, 2012 – Handball Court

 United Kingdom 3,000 sqm.

Singapore Youth Olympics, 2010 – Portable Flooring

 Singapore 1,000 sqm.

Beijing Youth Olympic Games, 2009 – Portable Flooring

 China 4,500 sqm.

Beijing Olympic Games, 2008

 China 12,000 sqm.

Olympics Athens, 2004

 Greece

Floor Safety and Performance

The standard relates to both safety and sports technical properties and the most important key factors are described below.

Shock Absorption

A shock-absorbing floor minimises the risk of injuries. Shock energy is absorbed by the floor when landing after a jump, the balance will be reflected on the legs and body of athletes.

Vertical Deformation

The floor's ability to absorb shock depends on its ability to flex when exposed to a dynamic load. Test results display the floor’s vertical deformation in mm when exposed to a dynamic impact equivalent to that of light jogging.

Ball Bounce

The floor’s ability to absorb shock depends on its ability to flex when exposed to a dynamic load. Test results display the floor’s vertical deformation in mm when exposed to a dynamic impact equivalent to that of light jogging.

Friction

Correct friction is important when ball players move rapidly on the floor, and the ideal friction rating is between 80 and 110. A friction value less than 80 makes the floor too smooth, and above 110 makes the floor too rough.

Rolling Load

The floor’s ability to withstand rolling loads is important for example where trolleys and retractable seating are used. Test results display whether the floor can withstand a rolling load of 1,500 N (approx. 150 kgs).
Timber Floating Floor Isolation

Timber Floating Floor Isolation

Shearflex and Supershearflex

Application

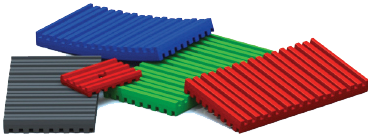

Shearflex and Supershearflex are shock pads for use in sports flooring or as an acoustic isolation pad underneath battens and timber strip flooring in apartments. They are also commonly used in theatres and auditoriums where moderate acoustical performance is required.

Features

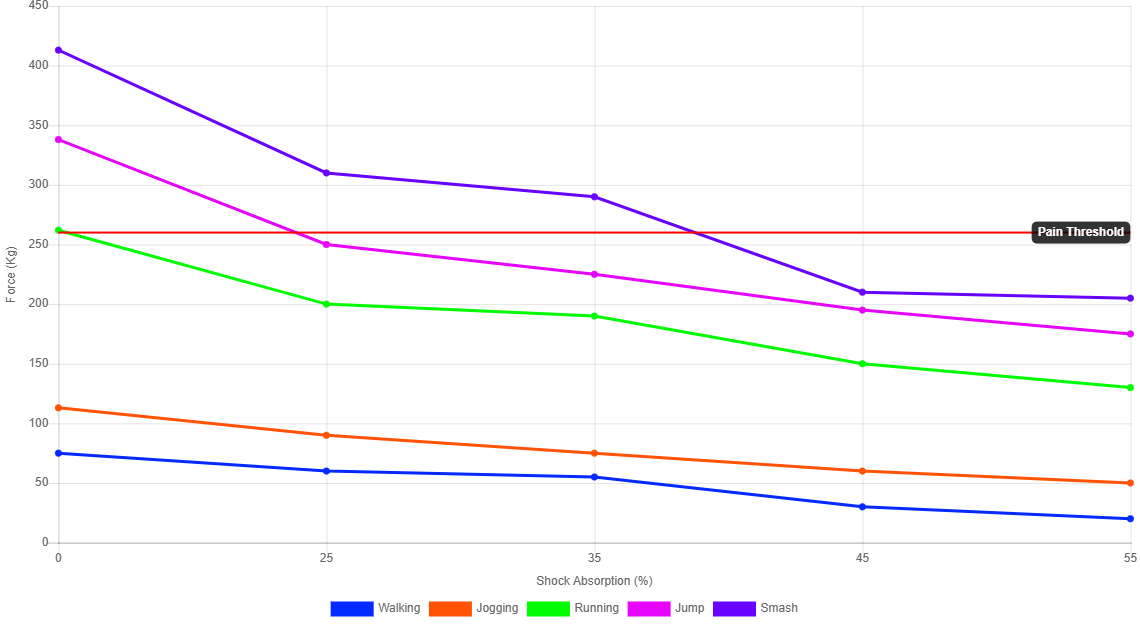

Pain Threshold vs Shock Absorption

Pain Threshold vs Shock Absorption

EN14904 Standard

 Minimal performance requirements to be met by indoor sports floors.

Installation – Sports Floors / Auditoriums

Installation – Sports Floors / Auditoriums

2 Layer"Plank-on-Ply"

Lay 100μm plastic membrane across entire floor with 100mm overlaps on joints and extending 100mm up each wall. Using a template, fix 45x45mm Shearflex red pads to first sheet of 12mm ply at 300x300mm centers.

Turn the plywood over and lay sheets at 45 degrees diagonally across the room leaving an expansion gap along the perimeter of 1.5mm per metre of floor between wall and floor. Always leave 2mm gaps between adjoining sheets.

Second sheet should be tack nailed and glued to the first sheet at 90 degrees to the first sheet, again leaving 2mm gap between sheets.

Install the final floor covering which may be either strip timber or mosaic parquetry. Strip timber is normally secret nailed while parquetry is glued using a timber flooring adhesive.

After the floor is sanded and finished, install skirts to perimeter.

Standard Values

Standard Values

The EN 14904 standard determines force reduction classes for all floors. The objective is to draw attention to the necessity of installing safe, comfortable floors that reduce the risk of injuries.

Sports Properties

DESCRIPTION STANDARD REQUIREMENT UNITS RESILIENT TIMBER
Vertical deformation EN 14809 ≤ 3.5 mm Pending
Shock absorption (Force Reduction) EN 14808 ≥ 25 % Pending
Friction coefficient EN 13036-4 80 - 110 - Pass SIRIM Test

Technical Characteristics

DESCRIPTION STANDARD REQUIREMENT UNITS RESILIENT TIMBER
Ball bounce EN 12 235 ≥ 90 % Pending
Indentation resistance EN 1516 ≤ 0.5 mm Pass SIRIM Test
Wheel resistance EN 1569 ≥ 1500 N Pending
Impact resistance EN 1517 ≥ 8 N/m Pass SIRIM Test
Abrasion resistance EN ISO 5470-1 ≤ 1000 mg Pass SIRIM Test
Gloss EN ISO 2813 ≤ 30 % Pending
Flatness EN 13036-7 < 6mm/3m - Pending

Classification

DESCRIPTION STANDARD REQUIREMENT UNITS RESILIENT TIMBER
Fire rating EN 13501-1 Cfl-s1 - Pending
Formaldehyde emission EN 717-1/2 ≥ E1 - Pending
Flatness EN 13036-7 < 6mm/3m - Pending
